SC UPC Pigtail 900um Unjacketed Fiber Optics Accessories

  • 1
  • 2

Brand Name : CY COM

Model Number : SC/UPC

Certification : RoHS,ISO9001

Place of Origin : Shenzhen China

MOQ : 10PCS

Price : 0.2USD-0.3USD

Payment Terms : L/C, T/T, Western Union

Supply Ability : 30000pcs per day

Delivery Time : 3-5 working days

Packaging Details : PE bag or plastic box and Carton box

Length : 1m or customized

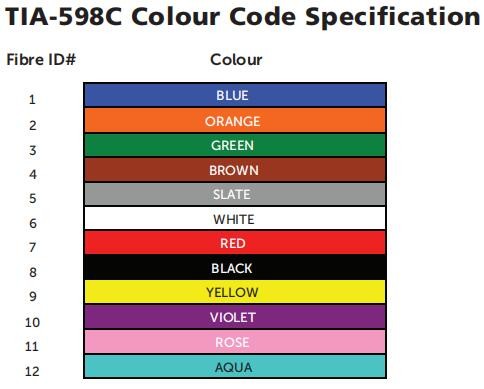

Cable color : 12 Colors

Connector : SC,FC,LC

Ferrule End-face : UPC,APC

Cable diameter : 0.9mm/2.0mm/3.0mm

Return loss : >60dB

Fiber Count : 4/6/8/12 Fibers

Contact Now

SC UPC Pigtail 900um Unjacketed Fiber Optics Accessories
Description:
CY COM 250um,900um 4/6/8/12 core multi-fiber fan-out pigtails with different connectors of SC, LC,FC, ST , it come with UPC or APC polish. the pigtails can be singlemode, multimode or OM3, with PVC or LSZH jacket. Widely used in CATV, FTTH/FTTX, telecomunication networks, premise installations, Data processing networks, LAN/WAN network, and more
Features :
Complying with IEC, Telcordia GR-326-CORE, YD-T 1272.3-2005,standard.
Low insertion loss, high return loss
Good in repeatability and exchangeability
High dense connection, easy for operation
Application:
Telecommunication
Computer networks
CATV networks Active device termination
Instrumentation

Parameters

Parameter Singlemode Fiber Multimode Fiber
PC UPC APC PC
Insertion Loss(dB) ≤0.3 ≤0.2 ≤0.3 ≤0.3
Return Loss(dB) ≥45 ≥50 ≥60 ≥20
Exchangeability(dB) ≤0.2
Plug-pull life(times) ＞1000
Operating temperature(℃) -40~+75
Storage temperature(℃) -45~+80
Fiber model φ0.9mm, φ2.0mm, φ3.0mm

SC UPC Pigtail 900um Unjacketed Fiber Optics Accessories

SC UPC Pigtail 900um Unjacketed Fiber Optics Accessories

SC UPC Pigtail 900um Unjacketed Fiber Optics Accessories
